Automatic SPT Hammer, SPT Automatic Trip Hammer

Automatic SPT Hammer

SPT Automatic Trip Hammer

The Automatic Trip Hammer is manufactured to comply with the Standard Penetration Test (SPT) to BS 1377: Part 9: 1990. SPT Drive Rods and a Split Tube Sampler are connected to the base of the anvil, and driven into the ground by the falling weight.

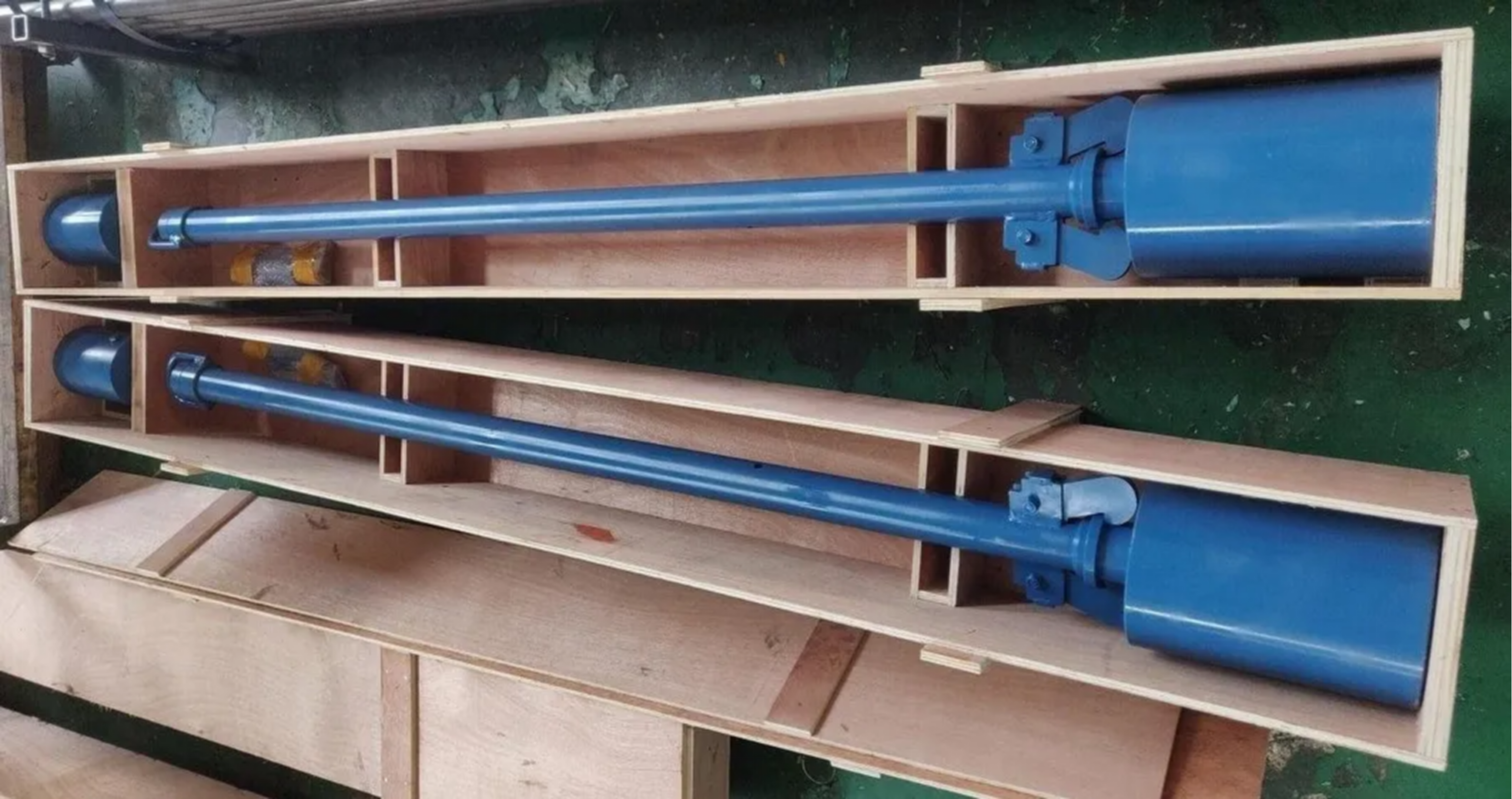

The Automatic SPT Hammer comprises a weight of 63.5 kg complete with pick-up and self-tripping mechanism that ensures that the weight has a free-fall of exactly 760 mm. The inner shaft acts as a guide that permits the weight to drop with minimal resistance and ensures that the weight strikes the anvil squarely. The Anvil thread is usually be processed with a 1-1/2″ B.S. whitworth to fit our standard SPT rods.

Adaptors to other types of drill rod can be supplied on request.

The overall length of the hammer is 2.6 m extended and 1.8 m when unextended. The total weight of the hammer is 107 kg.

Automatic SPT Hammer Components:

1. Outer Tube Assembly C/W Pawls
2. Inner Guide Shaft
3. Drop Weight
4. Anvil
