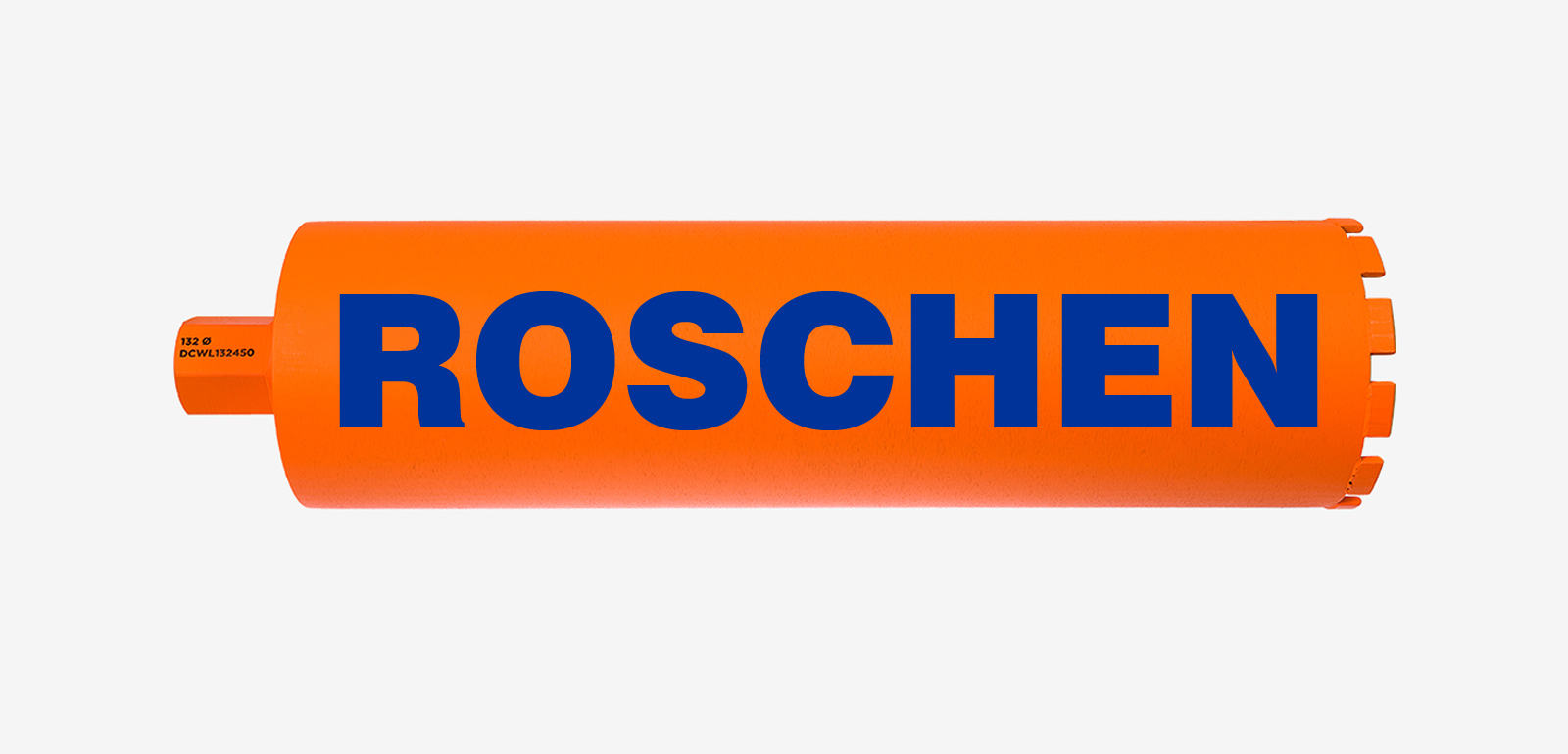

Diamond Core Drill Bit 1-1/4-7UNC
Diamond Core Drill Bit 1-1/4-7UNC
Item No.: 001
OD 8-1000mm 1-1/4-7UNC Nut High Frequency Welding Diamond Core Drill Bit for Drilling Reinforced Concrete, brick, asphalt. Suitable for Portable & Fixed Driller Machine. Direct Factory,customization Accepted.
Description
＊Out Diameter: Φ8mm~Φ1000mm
＊Segment Height:10mm
＊Working Length:245-400mm
＊Total Length:300-450mm
＊Direct Factory,Customization Accepted.
＊Raw Material: Precision Steel Tube & Diamond Segment
＊Screw:1-1/4-7,1-1/4-3,1/2BSP,M22and others
＊Shank Type:Hexgon
＊Application:Reinforced Concrete,Brick,Asphalt with Water.
＊Suitable for:Portable & Fixed Driller
＊Welding Process:High Frequency & Laser
＊Neat Segment Height,High Strength Segment,Sharp and Stable.
| DIAMOND CORE BIT Specifitions | |||||
| Outer Diameter | Inch | Outer Diameter | Inch | Outer Diameter | Inch |
| Φ8mm | 1/3" | Φ51mm | 2" | Φ168mm | 6-3/5" |
| Φ10mm | 2/5" | Φ56mm | 2-1/5" | Φ180mm | 7" |
| Φ12mm | 1/2" | Φ63mm | 2-1/2" | Φ202mm | 8" |
| Φ14mm | 5/9" | Φ66mm | 2-3/5" | Φ220mm | 8-7/10" |
| Φ16mm | 5/8" | Φ71mm | 2-4/5" | Φ245mm | 9-3/5" |
| Φ18mm | 5/7" | Φ76mm | 3" | Φ300mm | 12" |
| Φ20mm | 4/5" | Φ83mm | 3-1/4" | Φ350mm | 14" |
| Φ22mm | 7/8" | Φ89mm | 3-1/2" | Φ400mm | 15-1/2" |
| Φ24mm | 15/16" | Φ102mm | 4" | Φ450mm | 17-7/10" |
| Φ26mm | 1-1/27" | Φ108mm | 4-1/4" | Φ500mm | 19-7/10" |
| Φ28mm | 1-1/9" | Φ110mm | 4-1/3" | Φ550mm | 21-7/10" |
| Φ30mm | 1-3/16" | Φ120mm | 4-5/7" | Φ600mm | 23-3/5" |
| Φ32mm | 1-1/4" | Φ127mm | 5" | Φ650mm | 25-3/5" |
| Φ38mm | 1-1/2" | Φ132mm | 5-1/5" | Φ700mm | 27-3/5" |
| Φ40mm | 1-3/5" | Φ152mm | 6" | Φ800mm | 31-1/2" |
| Φ44mm | 1-7/10" | Φ159mm | 6-3/8" | Φ1000mm | 39" |
