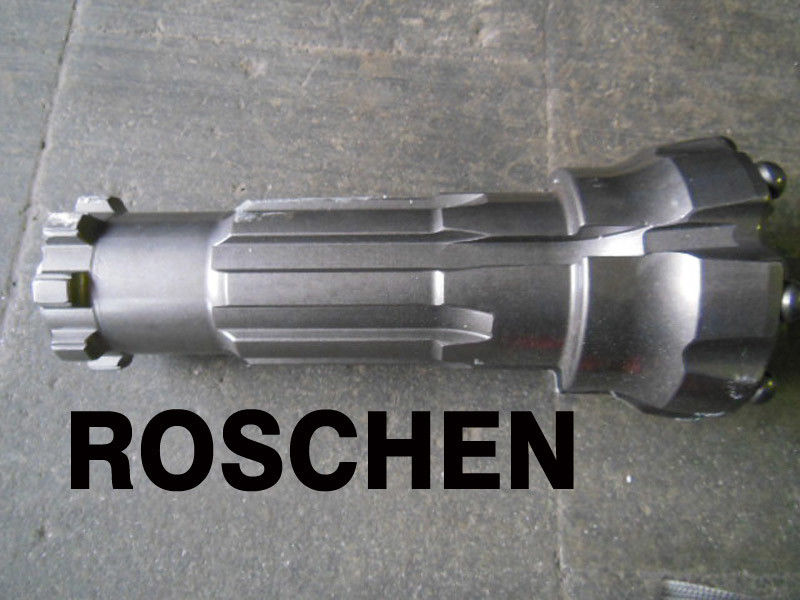

Atlas Copco RC45 Reverse Circulation Button Bits Fast Drilling Water Well Hole Drilling
Reverse circulation drilling
REVERSE CIRCULATION PERFORMANCE TOOLING
Reverse Circulation (RC) drilling is used to collect rock samples quickly and efficiently using a large rotary drill and air compressor. The high speed and lower cost per meter of RC drilling makes it ideal for obtaining mineral samples in the early phases of an exploration project.
Features:
1. Optimization of inner structure offers faster drilling speed and more stable operation.
2. Easy maintenance with simple inner structure and strong rigidity
3. With all-in-one collective tube, the RC hammer can be replaced without disassembly.
4. With special design of bit, RC drilling for different sizes of holes only by changing bit.
The components of reverse circulation DTH drilling tools:
1. RC drill bit
2. RC hammer
3. Double drilling pipe
Technical specifications:
| ROSCHEN Reverse Circulation Bits Specifications | ||||||||
| RE531 RC bits | ||||||||
| ROSCHEN Code: ROS RC 30 | ||||||||
| Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
| mm | inch | Gauge Buttons | Front Buttons | |||||
| 86 | 3 3/8 | 6x12 | 4x12 | 35 | 2 | 84 | 4.2 | RE531-86 |
| 89 | 3 1/2 | 8x12 | 8x12 | 35 | 2 | 87 | 4.3 | RE531-89 |
| 95 | 3 3/4 | 8x12 | 8x12 | 35 | 2 | 93 | 4.6 | RE531-95 |
| 102 | 4 | 8x12 | 8x12 | 35 | 2 | 100 | 4.9 | RE531-102 |
| RE004 RC bits | ||||||||
| ROSCHEN Code: ROS RC 40 | ||||||||
| Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
| mm | inch | Gauge Buttons | Front Buttons | |||||
| 114 | 4 1/2 | 8x14 | 6x14 | 35 | 2 | 112 | 11.5 | RE004-114 |
| 118 | 4 5/8 | 8x14 | 6x14 | 35 | 2 | 116 | 11.7 | RE004-118 |
| 121 | 4 3/4 | 8x14 | 6x14 | 35 | 2 | 119 | 12 | RE004-121 |
| 127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 12.4 | RE004-127 |
| RE542 | ||||||||
| ROSCHEN Code: ROS RC 50 | ||||||||
| Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
| mm | inch | Gauge Buttons | Front Buttons | |||||
| 121 | 4 3/4 | 8x14 | 6x14 | 35 | 2 | 119 | 10.6 | RE542-121 |
| 124 | 4 7/8 | 8x14 | 8x13 | 35 | 2 | 122 | 10.8 | RE542-124 |
| 127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 11 | RE542-127 |
| 130 | 5 1/8 | 8x14 | 10x14 | 35 | 2 | 128 | 11.3 | RE542-130 |
| RE543 | ||||||||
| ROSCHEN Code: ROS RC 50 | ||||||||
| Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
| mm | inch | Gauge Buttons | Front Buttons | |||||
| 124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 10.8 | RE543-124 |
| 127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 11 | RE543-127 |
| 130 | 5 1/8 | 8x14 | 10X14 | 35 | 2 | 128 | 11.3 | RE543-130 |
| 133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 11.8 | RE543-133 |
| RE545 | ||||||||
| ROSCHEN Code: ROS RC 50 | ||||||||
| Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
| mm | inch | Gauge Buttons | Front Buttons | |||||
| 124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 13.3 | RE545-124 |
| 127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 13.5 | RE545-127 |
| 133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 13.8 | RE545-133 |
| 136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 14.2 | RE545-136 |
| PR40 RC bit | ||||||||
| ROSCHEN Code: ROS RC 50 | ||||||||
| Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
| mm | inch | Gauge Buttons | Front Buttons | |||||
| 124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 14.3 | PR40-124 |
| 127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 14.7 | PR40-127 |
| 133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 15.2 | PR40-133 |
| 138 | 5 4/9 | 8x16 | 6x16+3x14 | 35 | 2 | 136 | 15.8 | PR40-138 |
| PR52 RC bit | ||||||||
| ROSCHEN Code: ROS RC 55 | ||||||||
| Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
| mm | inch | Gauge Buttons | Front Buttons | |||||
| 133 | 5 1/4 | 8x16 | 10x14 | 35 | 2 | 131 | 11.2 | PR52-133 |
| 136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 11.5 | PR52-136 |
| 140 | 5 1/2 | 8x16 | 6x16+3x14 | 35 | 2 | 138 | 11.9 | PR52-140 |
| 143 | 5 5/8 | 8x16 | 6x16+3x14 | 35 | 2 | 141 | 12.3 | PR52-143 |
| RE547 RC bit | ||||||||
| ROSCHEN Code: ROS RC 55 | ||||||||
| Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
| mm | inch | Gauge Buttons | Front Buttons | |||||
| 136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 15.1 | RE547-136 |
| 140 | 5 1/2 | 8x16 | 6x16+3x14 | 35 | 2 | 138 | 15.5 | RE547-140 |
| 143 | 5 5/8 | 8x16 | 6x16+3x14 | 35 | 2 | 141 | 15.8 | RE547-143 |
| 146 | 5 3/4 | 8x16 | 6x16+3x14 | 35 | 2 | 144 | 16.3 | RE547-146 |
| PR54 | ||||||||
| ROSCHEN Code: ROS RC 55 | ||||||||
| Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
| mm | inch | Gauge Buttons | Front Buttons | |||||
| 136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 18.2 | PR54-136 |
| 140 | 5 1/2 | 8x16 | 6x16+3x14 | 35 | 2 | 138 | 18.5 | PR54-140 |
| 143 | 5 5/8 | 8x16 | 6x16+3x14 | 35 | 2 | 141 | 18.8 | PR54-143 |
| 146 | 5 3/4 | 8x16 | 6x16+3x14 | 35 | 2 | 144 | 19.2 | PR54-146 |
| MX5456 RC bits | ||||||||
| ROSCHEN Code: ROS RC 50 | ||||||||
| Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
| mm | inch | Gauge Buttons | Front Buttons | |||||
| 133 | 5 1/4 | 8x16 | 8x14 | 35 | 2 | 131 | 15.2 | MX5456-133 |
| 140 | 5 1/4 | 8x16 | 8x14 | 35 | 2 | 138 | 18.5 | MX5456-140 |
| 146 | 5 3/4 | 8x18 | 8x14 | 35 | 2 | 144 | 19.2 | MX5456-146 |
| Notes: | ||||||||
| Metzke, Remet thread is available! | ||||||||
| Any special size of Reverse Circulation bits will be available by requests. | ||||||||
